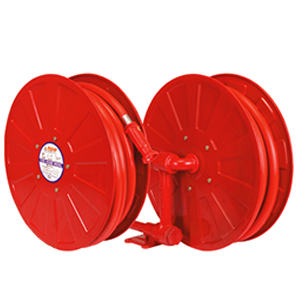

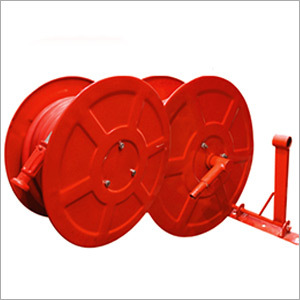

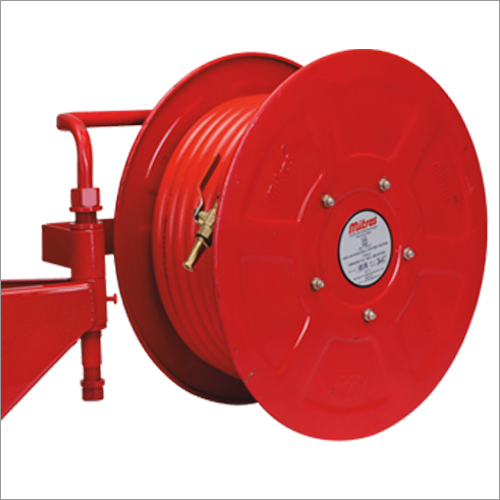

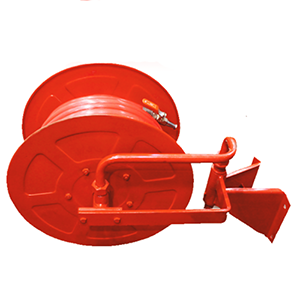

Fire Hose Reel EN 671-1

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Product Description

Owing to our high-tech production lines, we are able to manufacture and supply a wide gamut of Fire Hose Reel EN 671-1. Manufactured with the aid of pioneering techniques, it is fabricated with quality mild steel and coated with powder in red color. The provided reel is used as a fire fighting equipment for carrying water and foam. Along with this, the offered Fire Hose Reel EN 671-1 is featured with 560mm side plates.

Features:

High efficiency
Designed with thermoplastic hose
Strong structure
Easy to use
Compact
Space saving
Easy to handle

Technical Specifications:

Side Plates	Made of high quality mild steel, powder coated in Red colour
Side Plates O.D. (Diameter)	560 mm (22")
Distance Between Side Plates	6" (for 20mm)
Waterways	Made from non-ferrous metal (Aluminum Alloy)for making it corrosion resistant, duly powder coated
Hose Reel Drum	Confirming to EN 671-1:2012
Fire Hose	High quality semi-rigid marked (Type-1 or Type-2) / CE marked / EN approved ( confirming to EN 694), flame resistant, kink & abrasion resistant, fluted finish MITRAS Thermoplastic Hose with 2 years Guarantee
Hose Colours Available	Red / Black / Yellow
Hose Nominal Bore (ID)	19mm / 20mm / 25mm, as per requirement
Hose Length	20 / 25 / 30 / 36 / 40 mtrs, as per requirement
Shut-off Nozzle	Rotary operated, leak proof, CE marked / EN approved, hydraulically crimped with corrosion-free Stainless Steel Grade 304 fitting, shut-off nozzle with shut, spray & jet functions, made of super tough Polymer Alloy in red colour Optionally, Gun Metal Shut-off Nozzle also available
Swivel	180o double swivel
Working Pressure	1.2 Mpa (12 Bar)
